Packaging Express are proud to be official distributors of market leading pallet wrap machinery by Robopac. Available in both turntable and robotic versions, with different machines compatible for 150% stretch or 250% power-pre stretch, catering for all usage requirements. A summary of specifications for all machines is as below.

Please note that the Robopac delivery, installation & training service must be selected with purchase of any Robopac machine. Delivery and installation is not included in the price of the machine.

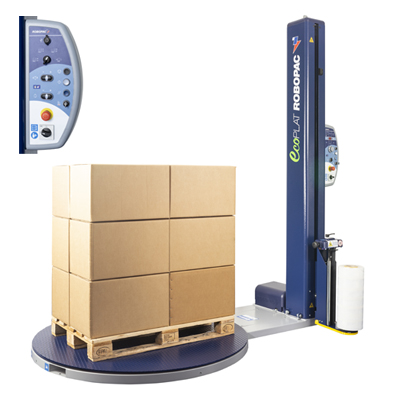

Robopac Ecoplat Plus Base Pallet Wrapping Turntable Machine

Model Name	Robopac Ecoplat Plus Base
Use	Entry Level Automatic Pallet Wrapping Turntable Machine
Type of machine stretch film	Standard 150% Machine Stretch Film
Recommended For	Businesses that wrap up to 30 pallets a day. For businesses that wrap more than 30 pallets a day, pallet wrap machinery compatible with 250% power-pre stretch film is recommended.
Max Wrap Height	2200mm
Max Loading Weight	2000kg
Turntable Diameter	1650mm
Power Supply	230-240V, 13A 50-60Hz Single Phase
Weight	285kg
Loading Ramp	Optional Purchase

The Robopac Ecolplat Plus Base machine is for use with standard 150% elongation machine pallet stretch film.

The Robopac Ecoplat Plus Base is a perfect entry level pallet wrapping turntable machine is the perfect introduction to automated pallet stretch wrapping. Recommended for businesses who wrap up to 30 pallets a day, although can be used for up to 150 pallets a day on average. The machine provides pre-set programming and consistent wrap quality for the packaging professional. The control panel on the Ecoplat Plus Base pallet wrapper allows you to easily set all the functions of the cycle through the use of electromechanical buttons. For use with standard 150% stretch machine stretch film.

Whilst this machine is suitable for medium to high usage, for businesses wrapping more than 30 pallets a day on average we would generally recommend the Masterplat Plus PGS machine, or the Robot Master 110 PDS machine, due to the compatibility of these machines with 250% elongation stretch film (hereby saving on the ongoing film cost).

Adjustable parameters and features of the Robopac Ecoplat Base machine include:

Top and bottom wraps.
Upward-downward carriage speed.
Turntable rotation speed.
Emergency stop.
IP54 - protection against water and dust.
New HMI - more intuitive and with more features.
Reliability and Sturdiness - built following the strictest safety and quality protocols.
Easy maintenance - USB port to update and download the data and software from the machine easily and quickly.
Industry 4.0 - possibility of installing R-connect system.
Forklift locations on the machine to enable it to be safely moved with a forklift.

Specifications:

- Max load weight 2000kg per pallet
- Maximum wrapping height: 2200mm
- Turntable diameter: 1650mm
- Max tower height 2490mm
- Spring brake stretch (FRD Carriage)
- Adjustable tension
- Variable plate rotation speed: 4-10 rpm
- Variable carriage speed: 1.4-4 m/min
- Power Supply - 230-240V, 13A 50-60Hz Single Phase
- Weight - 285kg
- Loading Ramp - Optional (Additional Purchase)

Warranty: This machine comes with a 36 month parts and 12 months labour manufacturer warranty. In the event of a breakdown (which is extremely rare), the manufacturer will repair the machine on site. Note that this does not include any 'wearing' parts - ie. no wear and tear included.

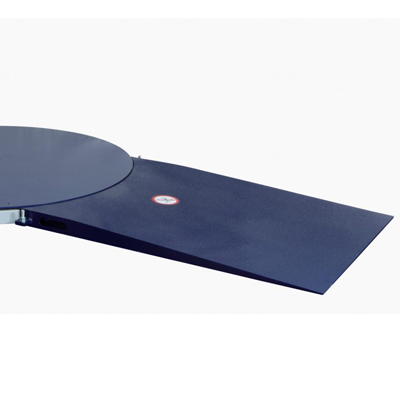

Loading Ramp: If you would like to use this machine with a pallet pump truck, you will need to purchase a ramp to affix to the turntable. These are available on our site.

Installation & Training: The delivery, installation and training service must be selected with this machine at a cost of £469. Note that this covers England only, please enquire for the delivery, installation and training cost in Wales and Scotland.

Lead Time: The lead time is generally 7-14 days from order, however this can be confirmed upon enquiry, or upon order. Please contact us by phone or email if you have any queries.

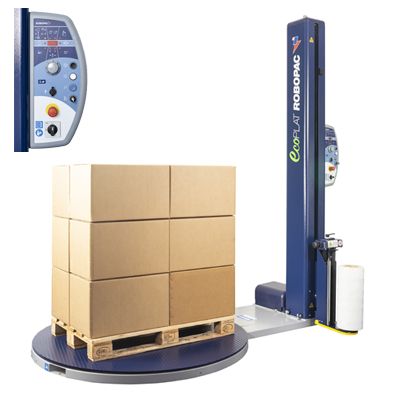

Robopac Ecoplat Plus FRD Pallet Wrapping Turntable Machine

Model Name	Robopac Ecoplat Plus FRD
Use	Entry Level Automatic Pallet Wrapping Turntable Machine With Enhanced LED Display, offering more options on wrapping cycles than the Ecoplat plus base version.
Type of machine stretch film	Standard 150% Machine Stretch Film
Recommended For	Businesses that wrap up to 30 pallets a day. For businesses that wrap more than 30 pallets a day, pallet wrap machinery compatible with 250% power-pre stretch film is recommended.
Max Wrap Height	2200mm
Max Loading Weight	2000kg
Turntable Diameter	1650mm
Power Supply	230-240V, 13A 50-60Hz Single Phase
Weight	315kg
Loading Ramp	Optional Purchase

The Robopac Ecolplat plus FRD machine is for use with standard 150% elongation machine pallet stretch film.

The Robopac Ecoplat FRD is a perfect entry level pallet wrapping turntable machine is the perfect introduction to automated pallet stretch wrapping. It contains all the benefits of the Ecoplat Plus Base model in addition to a more advanced LED display control panel, allowing for more options on wrapping cycles (see features below). Whilst this machine is suitable for medium to high usage (up to 150 pallets a day on average), for businesses wrapping more than 30 pallets a day on average we would generally recommend the Masterplat Plus PGS machine, or the Robot Master 110 PDS machine, due to the compatibility of these machines with 250% elongation stretch film (hereby saving on the ongoing film cost). Please call us to speak to a machine consultant, should you require further advice on the right machine for your business. Adjustable parameters and features of the Robopac Ecoplat Plus FRD machine include:

Top and bottom wraps.
Upward-downward carriage speed.
Variable turntable rotation speed.
Full wrapping cycle (up and down).
Single wrapping cycle (down only).
Eco Cycle.
Manual cycle.
Emergency stop.
IP54 - protection against water and dust.
New HMI - more intuitive and with more features.
Reliability and Sturdiness - built following the strictest safety and quality protocols.
Easy maintenance - USB port to update and download the data and software from the machine easily and quickly.
Industry 4.0 - possibility of installing R-connect system.
Forklift locations on the machine to enable it to be safely moved with a forklift.

Specifications:

- Max load weight 2000kg per pallet
- Maximum wrapping height: 2200mm
- Turntable diameter: 1650mm
- Max tower height 2490mm
- Carriage: FRD-PPS
- Adjustable tension
- Variable plate rotation speed: 4-10 rpm
- Variable carriage speed: 1.4/4 m/min
- Power Supply - 230-240V, 13A 50-60Hz Single Phase
- Weight - 315kg
- Loading Ramp - Optional (Additional Purchase)

Warranty: This machine comes with a 36 month parts and 12 months labour manufacturer warranty. In the event of a breakdown (which is extremely rare), the manufacturer will repair the machine on site. Note that this does not include any 'wearing' parts - ie. no wear and tear included.

Loading Ramp: If you would like to use this machine with a pallet pump truck, you will need to purchase a ramp to affix to the turntable. These are available on our site.

Installation & Training: The delivery, installation and training service must be selected with this machine at a cost of £469. Note that this covers England only, please enquire for the delivery, installation and training cost in Wales and Scotland.

Lead Time: The lead time is generally 7-14 days from order, however this can be confirmed upon enquiry, or upon order. Please contact us by phone or email if you have any queries.

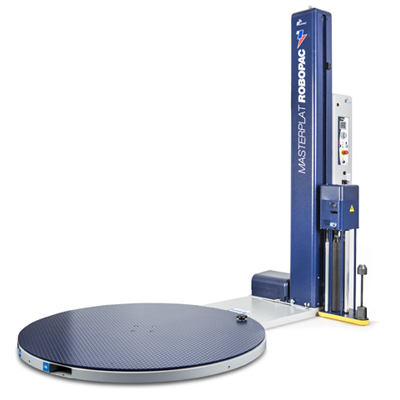

Robopac Masterplat Plus PGS Pallet Wrapping Turntable Machine

Model Name	Robopac Masterplat Plus PGS
Use	For businesses that have medium to high usage, who wrap more than 30 pallets a day.
Type of machine stretch film	Power-Pre 250% Machine Stretch Film
Recommended For	Businesses that wrap between 30-250 pallets a day. Designed for use with power-pre 250% elongation stretch film, saving considerably on film cost as well as labour time. Advanced wrapping cycle programming options available within the LED display panel.
Max Wrap Height	2200mm
Max Loading Weight	2000kg
Turntable Diameter	1650mm
Power Supply	230-240V, 13A 50-60Hz Single Phase
Weight	315kg
Loading Ramp	Optional Purchase



The Robopac Masterplat Plus PGS machine is designed for use with power-pre 250% elongation machine pallet stretch film.

The Robopac Masterplat Plus PGS is an excellent machine for medium to large size businesses and corporations who wrap more than 30 pallets a day. Designed for use with power-pre 250% stretch, using this machine saves a considerable amount of time, in addition to using considerably less stretch film (as a result of the stretch capability), helping to keep consumable costs to an absoloute minimum. The colour graphic display control panel is very simple to use, with options for both 'easy mode' and 'advanced mode' and programme selection occurs via a simple turn wheel.

Adjustable parameters and features include:

Indexed turntable, stops at same position every time.
Variable turntable rotation speed.
Full wrapping cycle.
Eco Cycle.
Manual cycle.
Emergency stop.
IP54 - protection against water and dust.
New HMI - more intuitive and with more features.
Reliability and Sturdiness - built following the strictest safety and quality protocols.
Easy maintenance - USB port to update and download the data and software from the machine easily and quickly.
Industry 4.0 - possibility of installing R-connect system.
Forklift locations on the machine to enable it to be safely moved with a forklift.

Specifications:

- Max load weight 2000kg per pallet
- Maximum wrapping height: 2200mm
- Turntable diameter: 1650mm
- Max tower height 2560mm
- Carriage: PGS
- Adjustable tension
- Variable plate rotation speed: 4-12 rpm
- Variable carriage speed: 1.6-4 m/min
- Power Supply - 230-240V, 13A 50-60Hz Single Phase
- Weight - 315kg
- Loading Ramp - Optional (Additional Purchase)

Warranty: This machine comes with a 36 month parts and 12 months labour manufacturer warranty. In the event of a breakdown (which is extremely rare), the manufacturer will repair the machine on site. Note that this does not include any 'wearing' parts - ie. no wear and tear included.

Loading Ramp: If you would like to use this machine with a pallet pump truck, you will need to purchase a ramp to affix to the turntable. These are available on our site.

Installation & Training: The delivery, installation and training service must be selected with this machine at a cost of £469. Note that this covers England only, please enquire for the delivery, installation and training cost in Wales and Scotland.

Lead Time: The lead time is generally 7-14 days from order, however this can be confirmed upon enquiry, or upon order. Please contact us by phone or email if you have any queries.



Robopac Robot Master M80 FRD Pallet Wrapping Machine

Model Name	Robopac Robot Master M80 FRD
Use	A fully robotic entry level pallet wrapping machine
Type of machine stretch film	Standard 150% Machine Stretch Film
Recommended For	Businesses that wrap up to 30 pallets a day. For businesses that wrap more than 30 pallets a day, pallet wrap machinery compatible with 250% power-pre stretch film is recommended.
Max Wrap Height	2200mm
Max Loading Weight	Does not apply, can wrap any pallet
Max Tower Height	2823mm
Power Supply	100-240V
Battery Charge Capability	Up to 150 pallets per charge
Rotation Speed	35-65 m/min
Variable Carriage Speed	1-4.6 m/min



The Robopac Robot Master M80 FRD machine is designed for use with standard 150% elongation machine pallet stretch film.

The Robopac Robot Master M80 FRD is a market leading innovative mobile and robotic solution to pallet wrapping requirements for small-medium size organisations. Recommended for businesses who wrap up to 30 pallets a day, although can be used for up to 150 pallets a day. Designed for use with standard 150% machine pallet stretch film, this machine acts as a self propelled robot for wrapping pallets, and can be used to wrap large or irregular size pallets. No operator assistance is required to wrap pallets once the machine is placed in position.

Whilst this machine is suitable for medium to high usage, for businesses wrapping more than 30 pallets a day on average we would generally recommend the Masterplat Plus PGS machine, or the Robot Master 110 PDS machine, due to the compatibility of these machines with 250% elongation stretch film (hereby saving on the ongoing film cost). Please call us to speak to a machine consultant, should you require further advice on the right machine for your business.

The control panel on the Robot Master M80 FRD contains 10 adjustable parameters and a choice of 3 programmes, with a graphical display and a jog wheel. The machine is designed for use in industrial environments and can operate in the most challenging conditions/space. Further benefits include:

Vocalised start signal and feature lights to warn nearby staff during the wrapping cycle.
Flexibility to large operations - can work around large pallets and irregular shape pallets.
20mm ground clearance.
Easy to store in a small space, and only requires a small space to work around the pallet.
Emergency stop.
IP54 - protection against water and dust.
New HMI - more intuitive and with more features.
Reliability and Sturdiness - built following the strictest safety and quality protocols.
Easy maintenance - USB port to update and download the data and software from the machine easily and quickly.
Industry 4.0 - possibility of installing R-connect system.
Specifications:

- Max load weight: Does not apply, can wrap any pallet
- Battery: 2 x 12V 75A AGV
- Maximum wrapping height: 2200mm
- Max tower height: 2823mm
- Battery charge capability: Up to 150 pallets per charge
- Carriage: FRD
- Adjustable tension
- Rotation speed: 35-65 m/min
- Variable carriage speed: 1-4.6 m/min
- Power Supply - 100-240V
- Installed Power - 0.3kW
- Loading Ramp - Not required

Warranty: This machine comes with a 12 month parts and labour manufacturer warranty. In the event of a breakdown (which is extremely rare), the manufacturer will repair the machine on site. Note that this does not include any 'wearing' parts - ie. no wear and tear included.

Loading Ramp: Not required for this model.

Installation & Training: The delivery, installation and training service must be selected with this machine at a cost of £469. Note that this covers England only, please enquire for the delivery, installation and training cost in Wales and Scotland.

Lead Time: The lead time is generally 7-14 days from order, however this can be confirmed upon enquiry, or upon order. Please contact us by phone or email if you have any queries.

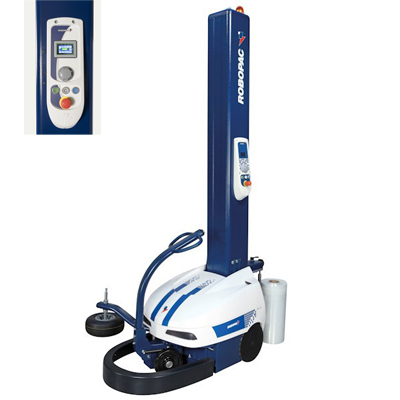

Robopac Robot Master 110 PDS Pallet Wrapping Machine

Model Name	Robopac Robot Master 110 PDS
Use	A fully robotic entry pallet wrapping machine for businesses that have medium to high usage, who wrap more than 30 pallets a day.
Type of machine stretch film	Power-pre 250% Machine Stretch Film
Recommended For	Businesses that wrap between 30-200 pallets a day. Designed for use with power-pre 250% elongation stretch film, saving considerably on film cost as well as labour time. Advanced wrapping cycle programming options available within the LED display panel.
Max Wrap Height	2200mm
Max Loading Weight	Does not apply, can wrap any pallet
Max Tower Height	2823mm
Power Supply	100-240V
Battery Charge Capability	Up to 200 pallets per charge
Rotation Speed	35-65 m/min
Variable Carriage Speed	1-4.6 m/min



The Robopac Robot Master 110 PDS machine is designed for use with power-pre 250% elongation machine pallet stretch film.

The Robopac Robot Master 110 PDS is a market leading innovative mobile and robotic solution to pallet wrapping requirements for medium-large size organisations. Designed for use with power-pre 250% stretch, using this self propelled pallet wrapping machine saves a considerable amount of time, in addition to using considerably less stretch film (as a result of the stretch capability), helping to keep consumable costs to an absoloute minimum. This machine can be navigated using a steering arm with forward and reverse manual control, and can be used to wrap large or irregular size pallets. No operator assistance is required to wrap pallets once the machine is placed in position.

The control panel on the Robot Master 110 PDS contains 10 adjustable parameters and a choice of 3 programmes, with a graphical display and a jog wheel. The machine is designed for use in industrial environments and can operate in the most challenging conditions/space. Further benefits include:

Vocalised start signal and feature lights to warn nearby staff during the wrapping cycle.
Flexibility to large operations - can work around large pallets and irregular shape pallets.
20mm ground clearance.
Easy to store in a small space, and only requires a small space to work around the pallet.
Emergency stop.
IP54 - protection against water and dust.
New HMI - more intuitive and with more features.
Reliability and Sturdiness - built following the strictest safety and quality protocols.
Easy maintenance - USB port to update and download the data and software from the machine easily and quickly.
Industry 4.0 - possibility of installing R-connect system.
Specifications:

- Max load weight: Does not apply, can wrap any pallet
- Battery: 2 x 12V 110A lead-acid - Maximum wrapping height: 2200mm
- Max tower height: 2823mm
- Battery charge capability: Up to 200 pallets per charge
- Carriage: PDS
- Adjustable tension
- Rotation speed: 35-65 m/min
- Variable carriage speed: 1-4.6 m/min
- Power Supply - 100-240V
- Installed Power - 0.4kW
- Loading Ramp - Not required

Warranty: This machine comes with a 12 month parts and labour manufacturer warranty. In the event of a breakdown (which is extremely rare), the manufacturer will repair the machine on site. Note that this does not include any 'wearing' parts - ie. no wear and tear included.

Loading Ramp: Not required for this model.

Installation & Training: The delivery, installation and training service must be selected with this machine at a cost of £469. Note that this covers England only, please enquire for the delivery, installation and training cost in Wales and Scotland.

Lead Time: The lead time is generally 7-14 days from order, however this can be confirmed upon enquiry, or upon order. Please contact us by phone or email if you have any queries.

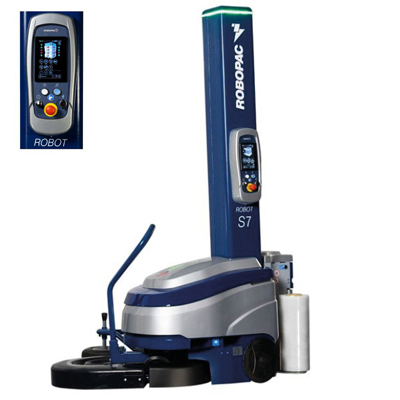

Robopac Robot Master S7 PG3S Pallet Wrapping Machine

Model Name	Robopac Robot Master S7 PG3S
Use	A high end fully robotic entry pallet wrapping machine for businesses that have high usage, offering 12 programmable wrapping cycles with a full LED display, and wrapping at top speeds.
Type of machine stretch film	Power-pre 250% or 300% Machine Stretch Film
Recommended For	Businesses that wrap between 30-250 pallets a day per machine. Designed for use with power-pre 250% or 300% elongation stretch film, saving considerably on film cost as well as labour time. Advanced wrapping cycle programming options available within the LED display panel.
Max Wrap Height	2200mm
Max Loading Weight	Does not apply, can wrap any pallet
Max Tower Height	2540mm
Power Supply	100-240V
Battery Charge Capability	Up to 250 pallets per charge
Rotation Speed	35-80 m/min
Variable Carriage Speed	1.5-5 m/min



The Robopac Robot S7 PG3S machine is designed for use with power-pre 250% or 300% elongation machine pallet stretch film.

The Robopac Robot S7 PG3S is a market leading innovative mobile and robotic solution to pallet wrapping requirements for medium-large size organisations. Designed for use with power-pre 250% or 300% stretch, using this self propelled pallet wrapping machine saves a considerable amount of time, in addition to using considerably less stretch film (as a result of the stretch capability), helping to keep consumable costs to an absoloute minimum. This machine can be navigated using a steering arm with forward and reverse manual control, and can be used to wrap large or irregular size pallets. No operator assistance is required to wrap pallets once the machine is placed in position.

The control panel on the Robot S7 PG3S contains 12 pre-set programmes, with a graphical display. This machine also contains a 24v 110amp traction battery (the same as a standard forklift truck) and a built in battery charger which is able to charge the battery from a standard 13 amp single phase supply. The machine is designed for use in industrial environments and can operate in the most challenging conditions/space. Further benefits include:

Vocalised start signal and feature lights to warn nearby staff during the wrapping cycle.
Flexibility to large operations - can work around large pallets and irregular shape pallets.
20mm ground clearance.
Easy to store in a small space, and only requires a small space to work around the pallet.
Emergency stop.
IP54 - protection against water and dust.
New HMI - more intuitive and with more features.
Reliability and Sturdiness - built following the strictest safety and quality protocols.
Easy maintenance - USB port to update and download the data and software from the machine easily and quickly.
Industry 4.0 - possibility of installing R-connect system.
Specifications:

- Max load weight: Does not apply, can wrap any pallet
- Battery: 24v 110amp - Maximum wrapping height: 2200mm
- Max tower height: 2540mm
- Battery charge capability: Up to 250 pallets per charge
- Carriage: PDS
- Rotation speed: 35-80 m/min
- Vertical carriage speed: 1.5-5m/min
- Power Supply - 100-240V
- Installed Power - 0.3kW
- Loading Ramp - Not required

Warranty: This machine comes with a 12 month parts and labour manufacturer warranty. In the event of a breakdown (which is extremely rare), the manufacturer will repair the machine on site. Note that this does not include any 'wearing' parts - ie. no wear and tear included.

Loading Ramp: Not required for this model.

Installation & Training: The delivery, installation and training service must be selected with this machine at a cost of £469. Note that this covers England only, please enquire for the delivery, installation and training cost in Wales and Scotland.

Lead Time: The lead time is generally 7-14 days from order, however this can be confirmed upon enquiry, or upon order. Please contact us via phone or email if you have any queries.



Robopac Loading Ramp For Turntable Machinery (Optional)

This ramp fits all Robopac turntable pallet stretch wrap machines so pallets can be loaded and unloaded with a pallet pump truck. This is an optional additional purchase. The size of the ramp is 1600mm (L) x 400mm (W) and is suitable for 1650mm turntables.

Note that this product can only be delivered with the purchase of a Robopac machine as an add-on item in the same delivery. If you require this product as a standalone item, please kindly call or email us for a quotation.

Still not sure?

Our experts are always on hand to help you navigate our packaging products. You can get in touch by calling the customer helpline on 0345 474 6372, Request a Call Back or by using the Contact Us form.
