Shrink Chamber Machines
- The Optimax® range has been designed for businesses that need to shrink wrap and seal products in one operation.Shrink chamber machines have been designed to speed up packing lines by providing a heat shrinking and sealing method in one unit, taking just a few seconds to complete the process.
- We offer three machines in the range, please see below for full product specifications. Each machine has maximum sealing dimensions so it’s easy for you to determine which of our machines suits your business’s needs. As an example, our best selling machine is the SC346 which has max sealing dimensions of 320mm x 460mm(DxL).
- Our machines all feature a roller mechanism that accommodates different heat shrink films including polyolefin, PVC, polyethylene, polythene along with micro-perforated film; these are all crystal clear films that are perfect for Point of Sale (POS).
- Our range are all floor-standing mounted on wheels for easy repositioning.
- Operated through a digital control panel with 6 programs available, including a seal only option.
- Shrink and seal a package in one operation using heat seal technology.
- Warranty: All products come with a full 12 month return to base manufacturer’s warranty.
- Installation & Training: This is an optional service as installation and operation are relatively straightforward.
| Item Code |
Description | Images | Price per Machine | Pack Per Price | Buy | Enter No. of Units |
|---|---|---|---|---|---|---|
| 1+ Machines |
||||||
| SLOPTINS |
Optimax Specialist Installation & Training (Optional) Service Provided: Installation and training Service Provider: Optimax technician Location: At your premises Necessity: This is an optional extra Availability: Most of England and Wales Please enquire if you are located in Scotland Lead Time: 1-2 weeks for booking |
 |
375.00 | |||
SC346 |
Optimax Model SC346 Shrink Chamber Machine Power Supply: 240V Single Phase, 13A Dimensions: 1120mm(L)x660mm(W)x550mm(H) Sealing Dimensions: 320mm x 460mm (D x L) Max Height of Package: 120mm Effective Power Consumption: 1.3-1.9kw Max Dimensions of Film Roll: 400mm x 250mm |
 |
1949.00 | |||
| SC455 |
Optimax Model SC455 Shrink Chamber Machine Power Supply: 240V Single Phase, 16A Dimensions: 1320mm(L)x820mm(W)x645mm(H) Sealing Dimensions: 420mm x 550mm (D x L) Max Height of Package: 250mm Effective Power Consumption: 1.6-2.3kw Max Dimensions of Film Roll: 600mm x 250mm |
 |
2079.00 | |||
| SC680 |
Optimax Model SC680 Shrink Chamber Machine Power Supply: 415V Three Phase, 50/60Hz Dimensions: 1575mm(L)x1020mm(W)x645mm(H) Sealing Dimensions: 620mm x 800mm (D x L) Max Height of Package: 250mm Effective Power Consumption: 2.3-3.4kw Max Dimensions of Film Roll: 800mm x 250mm |
 |
2895.00 |
- Product Description
Shrink Chamber Machines

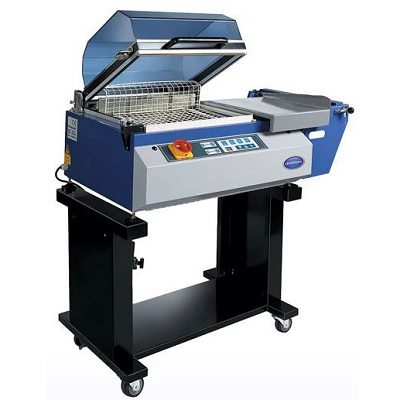

Model SC346 Optimax Shrink Chamber Machine
|
Model Type |
Optimax SC346 |
|
Power Supply |
240V Single Phase, 13A |
|
Machine Dimensions |
1120mm (L) x 660mm (W) x 550mm (H) |
|
Sealing Dimensions |
320mm x 460mm (DxL) |
|
Max Height of Package |
120mm |
|
Effective Power Consumption |
1.3-1.9kw |
|
Max Dimensions of Film Roll |
400mm x 250mm |
The Optimax branded SC346 heat shrink chamber is the bestselling model in the range. It both shrinks and seals a package in one operation by using heat seal technology. The SC346 has a very low power consumption and highly advanced electronic controls. It has maximum sealing dimensions of 320mm x 460mm. Runs from a 13A socket.

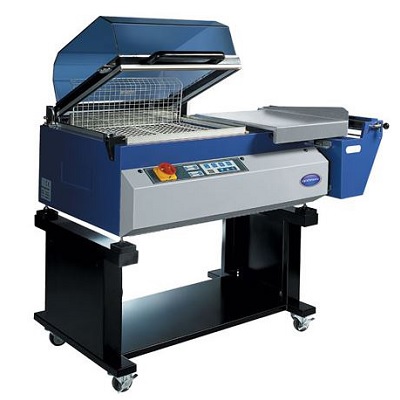

Model SC455 Optimax Shrink Chamber Machine
|
Model Type |
Optimax SC455 |
|
Power Supply |
240V Single Phase, 16A |
|
Machine Dimensions |
1320mm (L) x 820mm (W) x 645mm (H) |
|
Sealing Dimensions |
420mm x 550mm (DxL) |
|
Max Height of Package |
250mm |
|
Effective Power Consumption |
1.6-2.3kw |
|
Max Dimensions of Film Roll |
600mm x 250mm |
The Optimax branded SC455heat shrink chamber is a heavy-duty reliable machine with a good chamber capacity. It both shrinks and seals a package in one operation by using heat seal technology. The SC455 has an extremely low power consumption and highly advanced electronic controls. It has maximum sealing dimensions of 420mm x 550mm. Note the SC455 requires a minimum 16A power supply and will not run from a 13A socket (the SC346 model runs from a 13A socket)

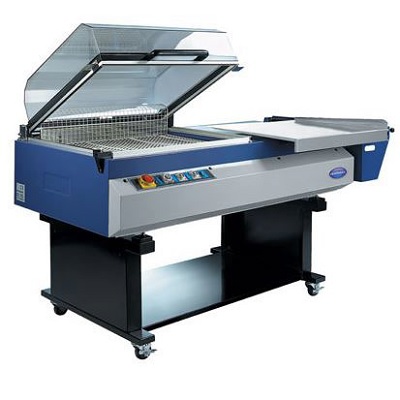

Model SC680 Optimax Shrink Chamber Machine
|
Model Type |
Optimax SC680 |
|
Power Supply |
415V Three Phase, 50/60Hz |
|
Machine Dimensions |
1575mm (L) x 1020mm (W) x 645mm (H) |
|
Sealing Dimensions |
620mm x 800mm (DxL) |
|
Max Height of Package |
250mm |
|
Effective Power Consumption |
2.3-3.4kw |
|
Max Dimensions of Film Roll |
800mm x 250mm |
The Optimax branded SC680 heat shrink chamber is the largest in the range, with maximum sealing dimensions of 620x800mm. It is a powerful and high capacity model which both shrinks and seals a package in one operation by using heat seal technology. The SC680 has highly advanced electronic controls. Note the SC680 requires 415V 3 phase supply.
Optional Optimax Specialist Installation & TrainingService
This is an optional service for the installation and training of the Optimax strapping range. An Optimax technician will come to your premises in England & Wales, but please enquire if you are based in Scotland. There is a 5-10 working day booking time.
Still not sure?
Our experts are always on hand to help you navigate our packaging products. You can get in touch by calling the customer helpline on 0345 474 6372, Request a Call Back or by using the Contact Us form.
